Hope hydraulic breaker is a powerful percussion hammer fitted to an excavator for demolishing hard (rock or concrete) structures.With advanced and high-precision production and testing equipment, high-quality technical personnel, combined with the quality management system, the accuracy and stability of product performance have been greatly improved, and the product has been comprehensively and strictly inspected before leaving the factory, making the company's product quality more prominent in the construction machinery industry.
Description
1.Adjust the strike energy according to the hardness of material.
2.Piston adopt high-quality material 40CrNiMo.After quenching and low tempering, it has high hardness, uniform structure, good wear resistance and high contact fatigue performance.
3.The steel body is made by the Alloy structural steel 20CrMo.
4.High efficiency of reversing valve.High precision,strict roundness and concentricity quality inspection ensure that the valve is not stuck.
5.High-quality material such as 42CrMo is adopted on the chisel to support high strength,toughness,hardenability,fatigue limit and multiple impact resistance after quenching and tempering treatment.

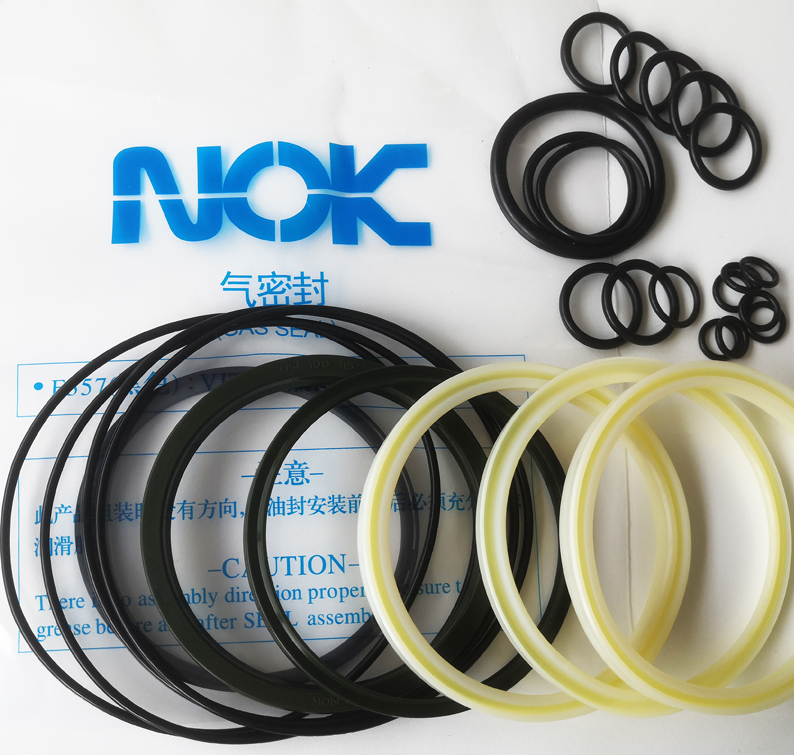

6.With high-quality oil seals,the products have the feature of good sealing function,high temperature resistance and corrosion resistance.The products can adopt to the vibration of the machine and the egocentricity of the spindle to provide a long time service.
7.Using the high-quality carbon structural steel,the screws have higher strength,good mechanical properties and deformation resistance.
Package
1. The standard free spare parts delivered with hydraulic breaker including: two pieces of Chisel, two pieces of high pressure oil hoses, a set of nitrogen charging device includes a gas bottle and a pressure gauge , a set of repair tools contained in tool box.

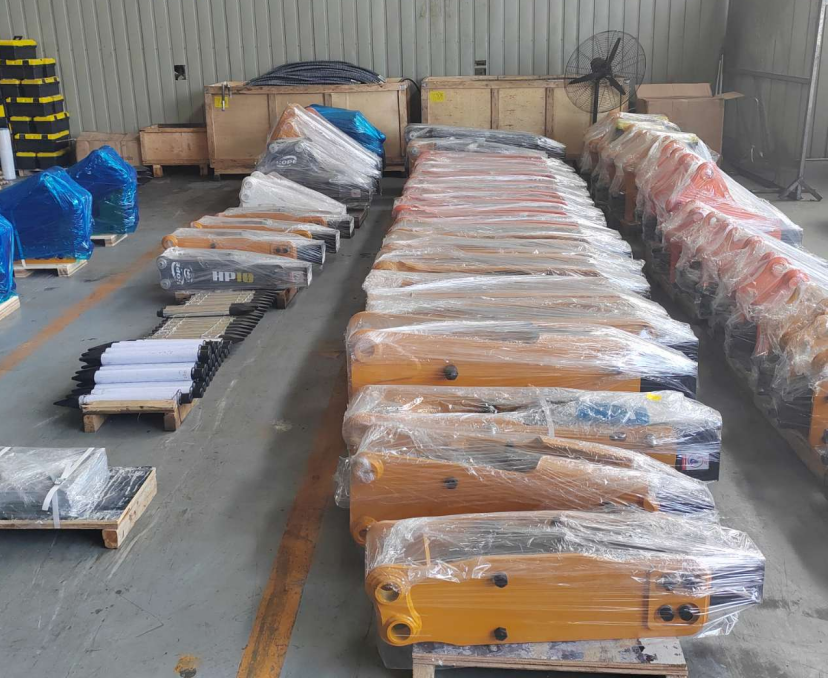

2. Inner is stretch film, outside is export wooden case or as customer’s request.
Specification
| ITEMS | GUN TYPE BREAKER |
| Models | 35 | 40 | 45 | 53 | 68 | 70 | 75 | 85 | 100 | 140 | 155 | 165 | 175 | 185 | 195 |
| Gross Weight(kg) | 95 | 95 | 130 | 195 | 290 | 290 | 400 | 620 | 900 | 1800 | 2740 | 2970 | 3730 | 4620 | 5410 |
| Length(mm) | 1080 | 1080 | 1239 | 1440 | 1638 | 1638 | 1864 | 2120 | 2380 | 2860 | 3100 | 3440 | 3650 | 3940 | 4020 |
| Driving Flow-Rate(litre/min) | 15-25 | 15-25 | 20-30 | 25-50 | 40-70 | 40-70 | 50-90 | 60-100 | 80-110 | 120-180 | 180-240 | 200-260 | 210-290 | 220-290 | 220-290 |
| Operating Pressure(Kg/cm2) | 90-120 | 90-120 | 90-120 | 90-120 | 95-130 | 95-130 | 120-150 | 130-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-180 | 180-220 | 180-220 |
| Striking Frequency(b.m.p) | 800-1400 | 800-1400 | 700-1200 | 600-1100 | 500-900 | 500-900 | 400-800 | 400-800 | 350-700 | 350-500 | 350-450 | 250-400 | 200-350 | 200-250 | 180-200 |
| Hose Diameter(inch) | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 | 3/4 | 3/4 | 1 | 5/4 | 5/4 | 5/4 | 5/4 | 5/4 |
| Rod Diameter(mm) | 35 | 40 | 45 | 53 | 68 | 70 | 75 | 85 | 100 | 140 | 155 | 165 | 175 | 185 | 195 |
| Applicable Vehicle Weight(ton) | 0.8-2.5 | 0.8-2.5 | 1.2-3 | 4.5-7 | 4-6 | 4-6 | 4.5-7 | 7-14 | 10-15 | 18-26 | 28-35 | 30-40 | 35-50 | 35-55 | 40-55 |
ABOUT US
Yantai Hope Precision Machinery Co., Ltd. has always regarded product quality as the life of the enterprise, passed the ISO9001 quality management system certification and CE certification, and was selected as the “preferential domestic brand ” of the Chins Council for the Promotion of International Trade.
It has won many honors in the industry quality evaluation, attracting many franchisees to visit the factory and negotiate the agency to join. Hope adheres to the enterprise concept of sincerity, truth-seeking and development, provides customers with high-quality technical support, and is always committed to becoming an international first-class enterprise on the basis of satisfying customers and gaining the trust of customers.
After more than ten years of development, we process a professional and experienced technical research team.
We produce our own brand by ourselves, the models of our products respectively are SB05, SB10,SB20,SB30,SB35,SB40,SB43,SB45,SB70,SB81 and other models.
